1.0mm Vertical (Through hole) Female header

Gender: Female
Pitch: 1.0mm (.039″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.0mm Vertical (Through hole) Female header

Gender: Female
Pitch: 1.0mm (.039″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.0mm Right-angle Female header

Gender: Female
Pitch: 1.0mm (.039″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.0mm Right-angle Female header

Gender: Female
Pitch: 1.0mm (.039″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.0mm SMT (Surface-Mount) Female header

Gender: Female
Pitch: 1.0mm (.039″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Surface-Mount
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.0mm SMT (Surface-Mount) Female header

Gender: Female
Pitch: 1.0mm (.039″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Surface-Mount
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Vertical (Through hole) Female header

Gender: Female
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Vertical (Through hole) Female header

Gender: Female
Pitch: 1.27mm (.050″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Right-angle Female header

Gender: Female
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Right-angle Female header

Gender: Female
Pitch: 1.27mm (.050″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm SMT (Surface Mount) Female header

Gender: Female
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Surface Mount
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm SMT (Surface Mount) Female header

Gender: Female
Pitch: 1.27mm (.050″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Surface Mount
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Vertical (Through hole) Female header

Gender: Female
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Dip) Through hole
Insulator height: 4.3mm or customizable
Pin lengths: customizable

2.0mm Vertical (Through hole) Female header

Gender: Female
Pitch: 2.0mm (.079″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Dip) Through hole
Insulator height: 4.3mm or customizable
Pin lengths: customizable

2.0mm Right-angle Female header

Gender: Female
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Dip) Through hole
Insulator height: 4.3mm or customizable
Pin lengths: customizable

2.0mm Right-angle Female header

Gender: Female
Pitch: 2.0mm (.079″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Dip) Through hole
Insulator height: 4.3mm or customizable
Pin lengths: customizable

2.0mm SMT(Surface-Mount) Female header

Gender: Female
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Surface-Mount
Insulator height: 4.3mm or customizable
Pin lengths: customizable

2.0mm SMT(Surface-Mount) Female header

Gender: Female
Pitch: 2.0mm (.079″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Surface-Mount
Insulator height: 4.3mm or customizable
Pin lengths: customizable

2.54mm Vertical (Through hole) Female header

Gender: Female
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Dip) Through hole
Insulator height: 8.5mm or customizable
Pin lengths: customizable

2.54mm Vertical (Through hole) Female header

Gender: Female
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Dip) Through hole
Insulator height: 8.5mm or customizable
Pin lengths: customizable

2.54mm Through hole Triple Row Female header

Gender: Female
Pitch: 2.54mm (.100″) inch pitch
Row: Triple
Circuits: 2 - 120 pins
Version: Vertical (Dip) Through hole
Insulator height: 8.5mm or customizable
Pin lengths: customizable

2.54mm Right-angle Female header

Gender: Female
Pitch: 2.54mm (.100″) inch pitch
Row: single
Circuits: 2 - 40 pins
Version: Right-angle (Dip) Through hole
Insulator height: 8.5mm or customizable
Pin lengths: customizable

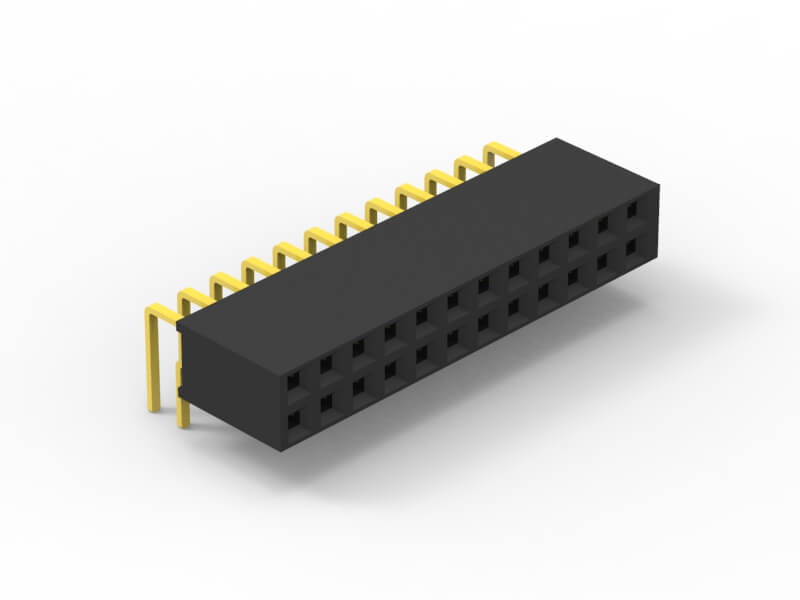

2.54mm Right-angle Female header

Gender: Female
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Dip) Through hole
Insulator height: 8.5mm or customizable
Pin lengths: customizable

2.54mm SMT (Surface-Mount) Female header

Gender: Female
Pitch: 2.54mm (.100″) inch pitch
Row: single
Circuits: 2 - 40 pins
Version: Surface-Mount
Insulator height: 8.5mm or customizable
Pin lengths: customizable

2.54mm SMT (Surface-Mount) Female header

Gender: Female
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Surface-Mount
Insulator height: 8.5mm or customizable
Pin lengths: customizable

2.54mm Through hole Single Row Female header

Gender: Female
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Dip) Through hole
Insulator height: 8.5mm or customizable
Pin lengths: customizable

2.54mm U-Shaped Female header

Gender: Female
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Through hole
Insulator height: 8.5mm or customizable
Pin lengths: customizable

2.54mm U-Shaped Dual Row Female header

Gender: Female
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Through hole
Insulator height: 8.5mm or customizable
Pin lengths: customizable

Female header always called as “Header connector”,  Smolex provide widely range of header connector, from 2.54mm (.100″ inch) pitch to 1.0mm (.039″ inch) pitch. The number of pins (contacts) is from 2 to 40 pins per orw. There are three type: Straight (Dip Vertical), Right angle, SMT (surface mount).

If you can not find the items you interest from above items, welcome to contact us, and you will always get fully responsive from us.
