2.0mm SMT female header connector

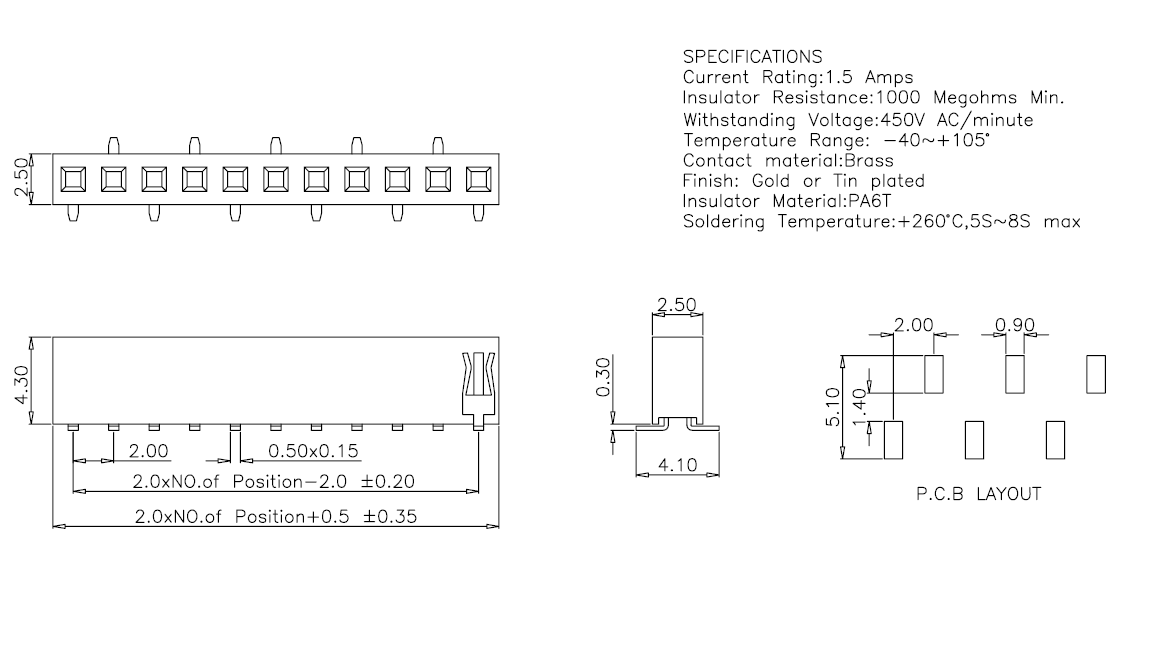

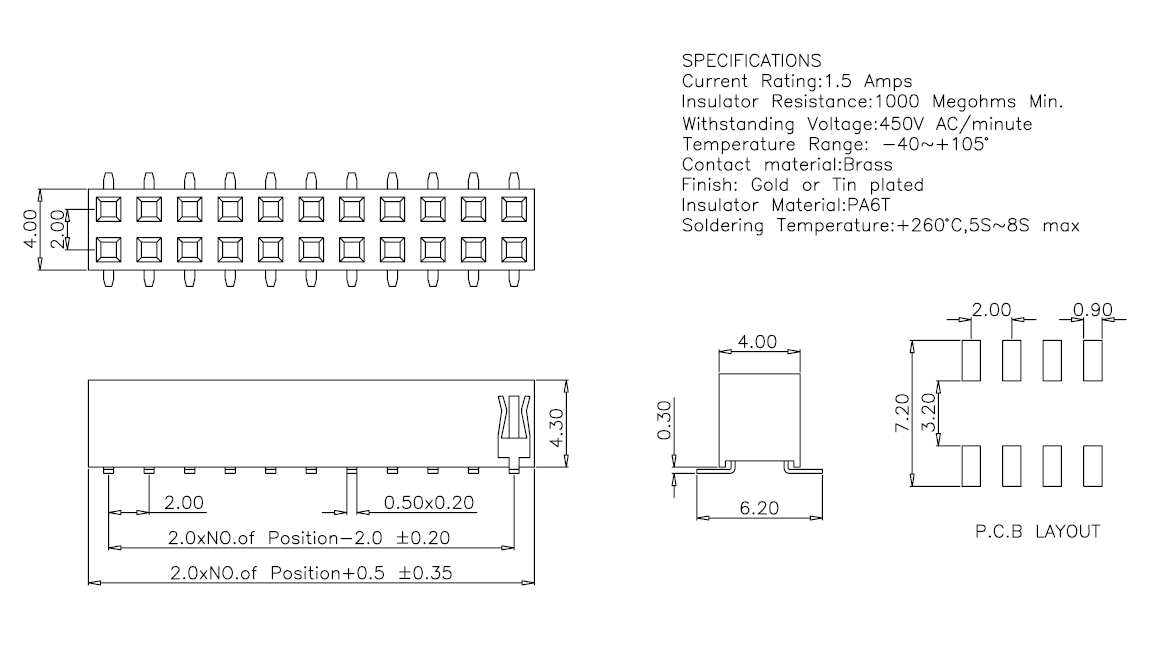

PDF Drawings: 2.0mm Female Header SMD

Please contact us for drawings of customized pin length and insulator height.

---

Overview:

2.0mm (.079”) inch SMT SMD (female) header connectors is PCB headers for board to board connectors connection. The peg and cap are optional. Generally as a Receptacle for insert the contact of pin header.This product include: single and dual row in Right-angle version, three and four row can also be made according to customer’s request. You can choose the orientation like DIP Right-angle and Horizontal (SMT surface mount) to approach the function you want according to the PCB board design while mated with different types of Pin header connectors.

This types of headers connector are suitable for PCB board to board connection or for signal transmission application.

Feature:

-Contacts: 2-40 pins for single row and 4-80 pins for dual row.
-Orientation: SMT(surface mount) Horizontal
-Highly customized: Insulator height profile can be design to double or more to match the current you need. Pins length can be modify according to the distance of PCB board you need.
-Materials: Metal contact material: Copper Alloy ( Brass or Phosphor Bronze)
-Insulator: PBT UL 94V-0 or custom

Here is some hot goods in SMT version: 6 8 14 16 20 24 40 pins motherboard female header connectors, and some well-konw like Arduino headers and X-bee headers connector.

Application

Board to board connectors or Signal application:
-Electronic device
-Home appliances
-Electrical instruments
-Automotive: Car navigation LCD panel and so on.
-Lighting industry

The above applications are typical but not limited, these products are widely use in many fields. for more information or have any advice please contact Smolex.
