1.0mm straight pin header connector

1-0mm-pitch-straight-pin-header
Specifications
 General  Spec.
 Product Name:  1.0mm (.039”) straight pin header connector
 Pitch(spacing):  1.0mm (.039”) inch pitch
 Gender:  Male
 Breakaway:  Yes
 Number of Contact:  2 – 50 pins (single row); 4 – 100 pins (dual row)
 Number of Rows:  Single or dual
 Orientation:  Vertical (Dip)
 locating peg  Without locating peg
 Material:  High Temperature Thermoplastic
 Contact material:  Brass or Phosphor Bronze
 Insulator material:  PA6T (Optional:LCP NA6T PA46 PA66) + UL94V-0
 Insulator color:  Black
 Flammability:  UL94V-0
 Contact Plating:  Gold flash over 50μ” nickel or custom
 Pin lengths:  Standard(refer to drawing) or Customizable
 PC Tail Length:  Standard(refer to drawing) or Customizable
 Packaging Type:  Bulk in Box or Bag
RoHS compliant:  Yes
 Mating Part:   1.0mm (.039″) female header connectors

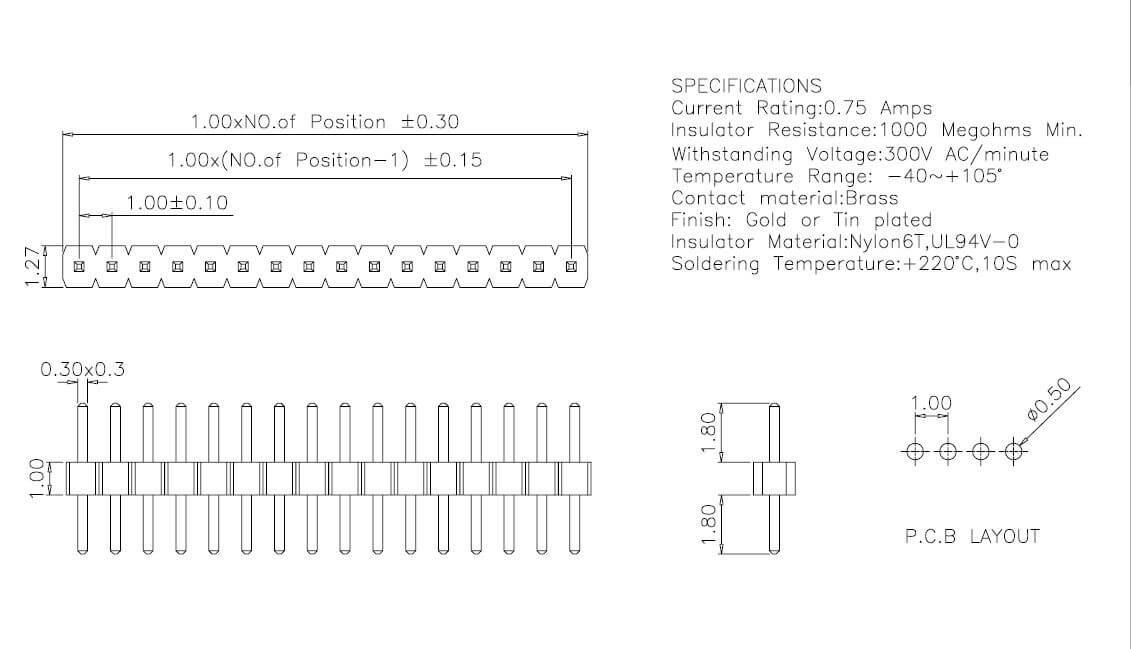

Drawing & Datasheet
