Pin Header

1.0mm Vertical (Through hole) pin header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Straight (Dip) Through hole
Insulator height: 1.50mm or customizable
Pin lengths: customizable

1.0mm Vertical (Through hole) pin header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Dual Row
Circuits: 2 - 80 pins
Version: Straight (Dip) Through hole
Insulator height: 1.50mm or customizable
Pin lengths: customizable

1.0mm Elevated Through hole Pin Header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Dip)
Insulator height: 1.0mm or customizable
Pin lengths: customizable

1.0mm Elevated Through hole Pin Header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Dip)
Insulator height: 1.0mm or customizable
Pin lengths: customizable

1.0mm Right-angle (Through hole) pin header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Dip) Through hole
Insulator height: 1.0mm or customizable
Pin lengths: customizable

1.0mm Right-angle (Through hole) pin header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Dip) Through hole
Insulator height: 1.0mm or customizable
Pin lengths: customizable

1.0mm Right-angle Dual Row pin header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Dip) SMT
Insulator height: 1.0mm or customizable
Pin lengths: customizable

1.0mm SMT (Surface Mount) pin header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: SMT (Surface Mount)
Insulator height: 1.0mm or customizable
Pin lengths: customizable

1.0mm SMT (Surface Mount) pin header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Single
Circuits: 2 - 80 pins
Version: SMT (Surface Mount)
Insulator height: 1.0mm or customizable
Pin lengths: customizable

1.0mm SMT (Surface Mount) pin header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Single
Circuits: 2 - 80 pins
Version: SMT (Surface Mount)
Insulator height: 1.0mm or customizable
Pin lengths: customizable

1.0mm Elevated Surface Mount 2 Row Pin Header

Gender: Male
Pitch: 1.0mm (.039″) inch pitch
Row: Single
Circuits: 2 - 80 pins
Version: SMT (Surface Mount)
Insulator height: 1.0mm or customizable
Pin lengths: customizable

1.27mm Vertical (Through hole) pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Straight (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Vertical (Through hole) pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 80 pins
Version: Straight (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Elevated Single Row pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Elevated Dual Row pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Right-angle (Through hole) pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Dip) Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Right-angle (Through hole) pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Elevated Right-angle Pin Header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Elevated Right-angle Dual Row pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Elevated Right-angle pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Elevated Right-angle 2 Row pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm SMT (Surface Mount) pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: SMT (Surface Mount)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm SMT (Surface Mount) pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: SMT (Surface Mount)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Elevated SMT (Surface Mount) pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: SMT (Surface Mount)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

1.27mm Elevated Surface Mount 2 row pin header

Gender: Male
Pitch: 1.27mm (.050″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: SMT (Surface Mount)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Vertical (Through hole) pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Vertical (Through hole) pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 80 pins
Version: Vertical (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Triple row Through hole pin header

Gender: Male
Pitch: 2.0mm pitch
Row: Triple
Circuits: 2 - 120 pins
Version: Straight (Dip) Through hole
Insulator height: 1.50mm or customizable
Pin lengths: customizable

2.0mm Quad row Through hole pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Four
Circuits: 2 - 160 pins
Version: Vertical (Dip)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Elevated Single row pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Elevated Dual row pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Right-angle (Through hole) pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Right-angle (Through hole) pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Elevated Right angle pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

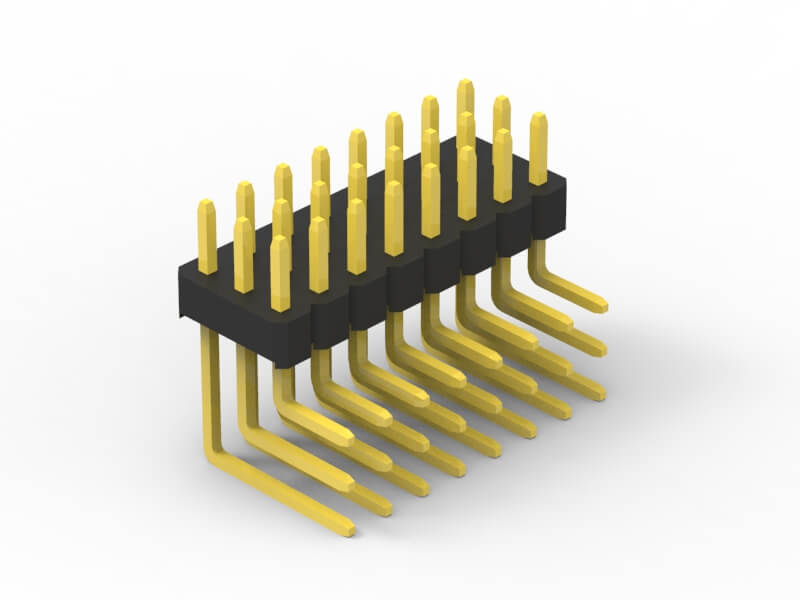

2.0mm Elevated Right angle Dual row pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Elevated Right angle Triple row pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Triple
Circuits: 2 - 120 pins
Version: Right-angle (Through hole)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm SMT (Surface Mount) pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: SMT (Surface Mount)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm SMT (Surface Mount) pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: SMT (Surface Mount)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Elevated SMT (Surface Mount) pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: SMT (Surface Mount)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Elevated Surface Mount Dual row Pin Header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: SMT (Surface Mount)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Surface Mount Single row pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: SMT (Surface Mount)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm Surface Mount Dual row pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 80 pins
Version: SMT (Surface Mount)
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.0mm U-Shaped Through hole pin header

Gender: Male
Pitch: 2.0mm (.079″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Through hole
Insulator height: 2.0mm or customizable
Pin lengths: customizable

2.54mm Vertical (Through hole) pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

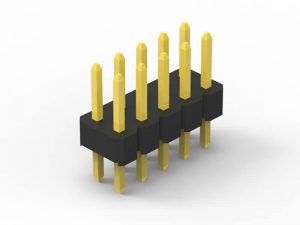

2.54mm Vertical (Through hole) pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Vertical Elevated pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Vertical (Dip)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Vertical Dual row Elevated pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Vertical (Dip)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Right-angle (Through hole) pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Right-angle (Through hole) pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Elevated Right-angle pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Right-angle ( Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Elevated Right-angle pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle (Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Elevated Right-angle pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version: Right-angle ( Through hole)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm SMT (Surface Mount) pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm SMT (Surface Mount) pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Elevated SMT (Surface Mount) pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Elevated SMT (Surface Mount) pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Single row Surface Mount pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Dual row Surface Mount pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Dual
Circuits: 2 - 80 pins
Version:SMT (Surface Mount)
Insulator height: 2.50mm or customizable
Pin lengths: customizable

2.54mm Single row Through hole pin header

Gender: Male
Pitch: 2.54mm (.100″) inch pitch
Row: Single
Circuits: 2 - 40 pins
Version: Through hole
Insulator height: 2.50mm or customizable
Pin lengths: customizable
